Ground station GCS-19

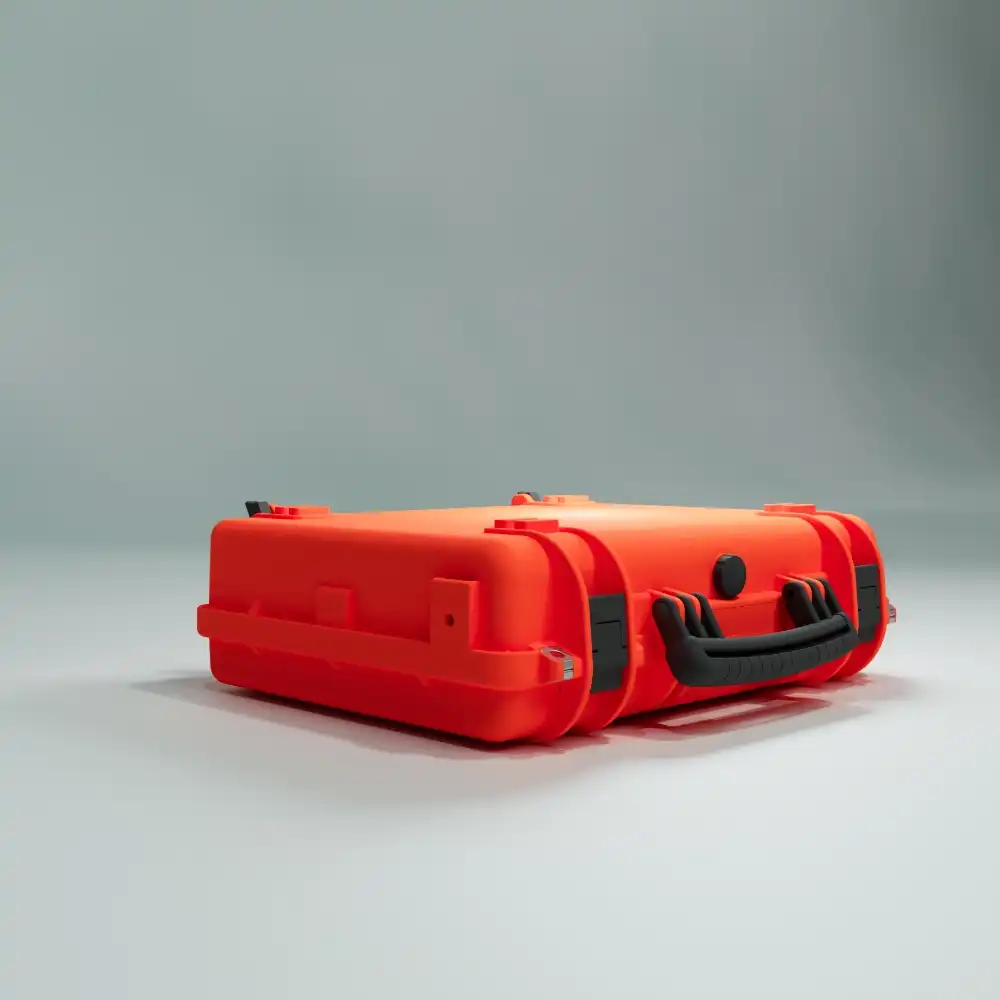

GCS_small04

Ultra-rugged
Ground Station

The GCS1-19K is built to perform in the most challenging environments, from underground and on water to the harshest field conditions. This ultra-rugged ground station ensures reliable support for unmanned aerial systems (UAS) operations and data processing. Featuring substantial computing power, it is capable of handling even the most demanding tasks, keeping operations running smoothly no matter the environment.

With an industrial-grade mainboard and a high-quality touchscreen display, the GCS1-19K is designed for optimal performance in any condition. Its display remains fully readable even in direct sunlight, ensuring clear visibility during critical operations. Whether in extreme weather or remote locations, this ground station provides dependable support for seamless UAS missions.

Features

The GCS1-19K ground station combines powerful computing capabilities with rugged design, ensuring reliable support for UAS operations in the most challenging environments. Featuring an Intel i7 11th Gen processor, 32GB of RAM, and a 1TB SSD, it handles demanding data processing tasks with ease. Its sunlight-readable 19” touchscreen and durable, shockproof case make it ideal for field operations, offering seamless connectivity and exceptional performance under harsh conditions.


icon_durable

Rugged durability

icon_performance

High performance

icon_sun

19'' Sunlight-Readable



High Performance and Storage

The GCS1-19K is built for demanding UAS operations, powered by an Intel i7 11th Gen processor (1165G7), with 4 cores and 8 threads capable of up to 4.7GHz. Coupled with 32GB DDR4 memory and a 1TB NVMe SSD, this ground station offers exceptional processing power and fast, reliable storage to handle intensive data processing tasks, even in remote environments.

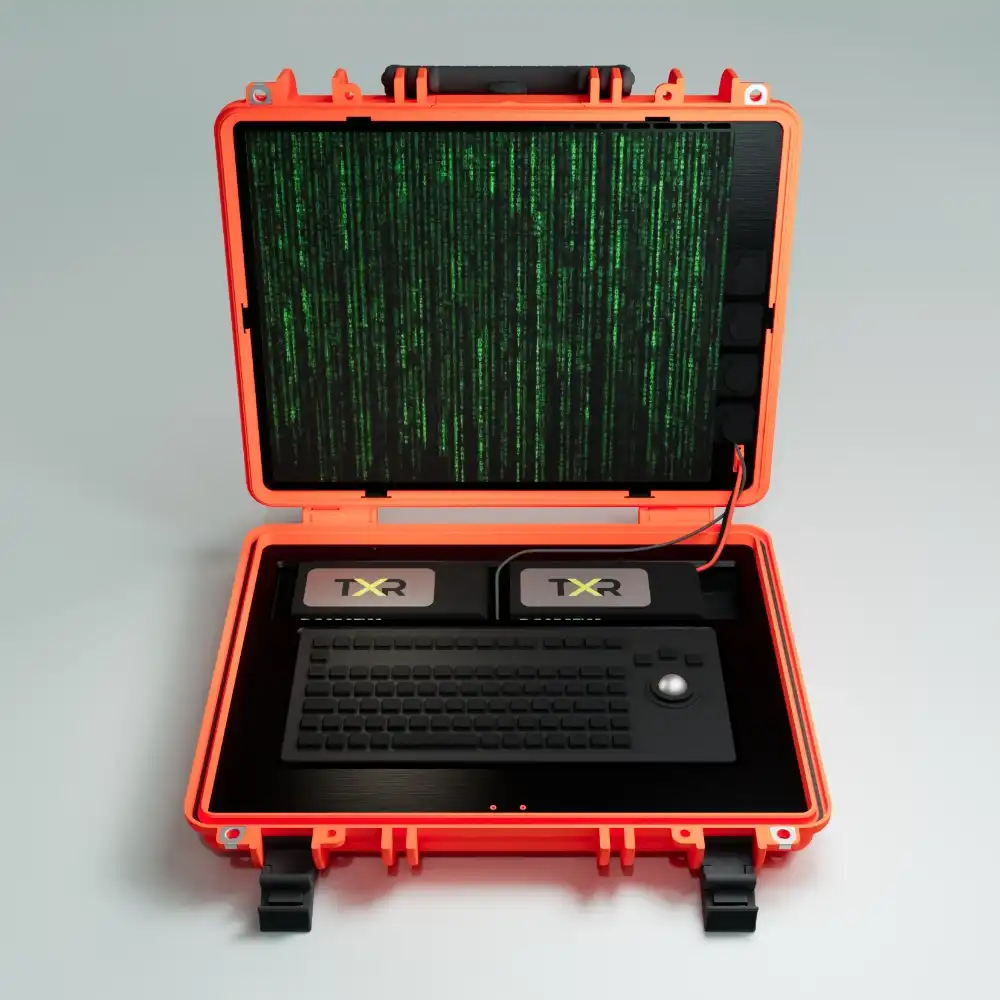

GCS_small05

Rugged and Reliable Design

Designed for harsh environments, the GCS1-19K features a shockproof and waterproof copolymer polypropylene case and a 7075 aluminum frame, ensuring durability and protection in extreme conditions. The IP67-rated keyboard and waterproof trackball allow reliable operation, even in wet and challenging field environments, making it ideal for outdoor use.

GCS_small01

Exceptional Display and User Interface

The GCS1-19K is equipped with a 19” Advantech industrial touchscreen featuring 1200 nits brightness, ensuring direct sunlight readability. Its resistive touch screen provides accurate input in all conditions, while the intuitive interface allows for smooth control and monitoring of UAS operations, even under harsh lighting and weather conditions.

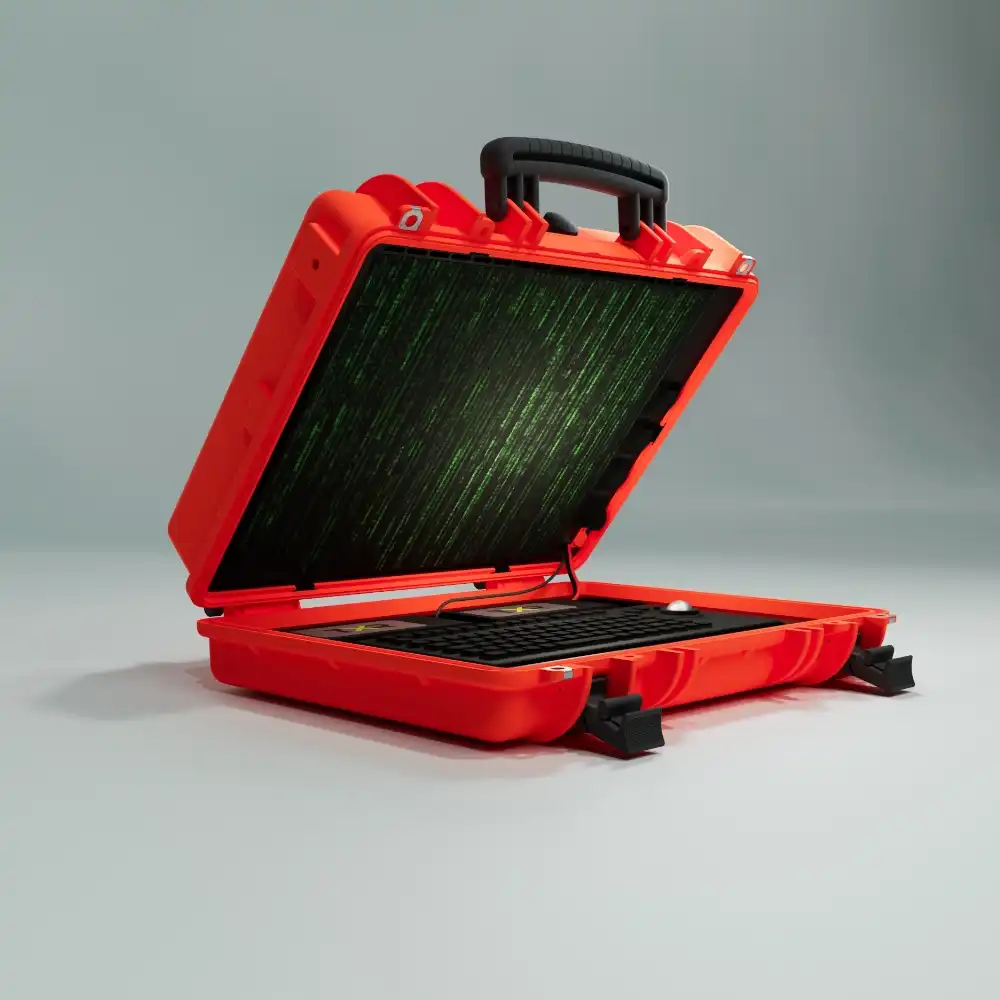

GCS_small03

Comprehensive Connectivity Options

Offering both wired and wireless connectivity, the GCS1-19K ensures fast and stable communication in the field. It features Intel Wi-Fi 6, Bluetooth 5.2, and 2.5Gbit Ethernet, allowing seamless data transfer and remote control. The ground station also includes multiple USB ports, HDMI output, and additional power inputs to support various devices and ensure continuous operation during missions.

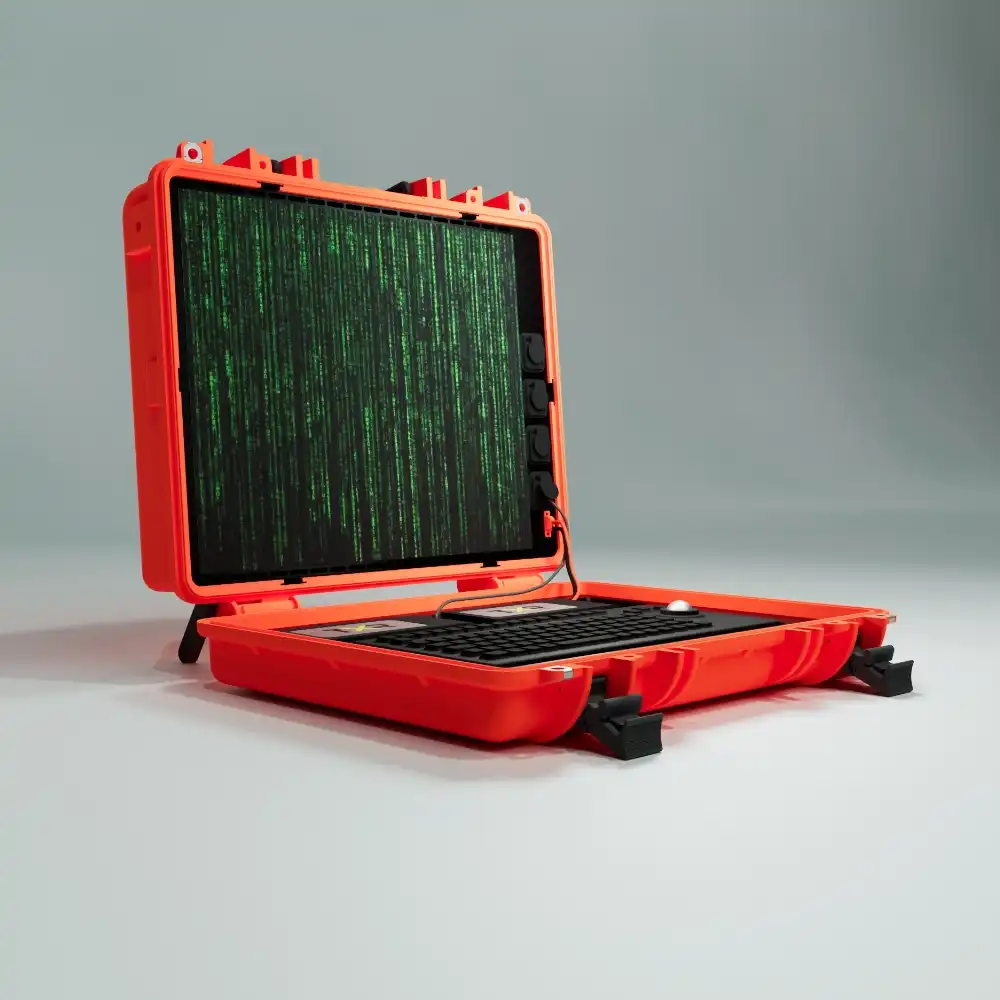

GCS_small02

Technical specifications

Basic specifications

Instrument designationGCS1-19K-TOUCH-i7-32GB-1TB
MainboardIntel NUC Industrial platform, i7 11th gen processor (1165G7), 4/8 Cores/Threads, 4.7GHz, 12MB
Memory32GB (2x16GB) DDR4-3200 SODIMM
Storage1TB NVMe SSD Drive (Samsung 980 PRO)
DisplayAdvantech industrial 19" SXGA, LED 1200nt, direct sunlight readable, resistive touch screen
Keyboard / trackbalNSi IEC60945 Marine silicone rubber 92 key keyboard, IP67, 25mm waterproof trackbal
LANIntel i255-LM Gigabit Ehthernet controller with 2.5Gbit/s support
WirelessIntel Wi-Fi 6 AX201 M.2 card, 802.11ax, 2x2 Wi-Fi + Bluetooth v 5.2, up to 2.4Gbps
External connectors2x USB 2.0, 2x USB 3.2, HDMI 2.0b, RJ-45 Ethernet 2.5Gbit, 2x DC power in, 2x rSMA antenna
Frame construction7075 Aluminium fully machined frame construction
EnvironmentOperating temp: 0-40° C, humidity 5 - 95% @40° C, non-condensing, storage:-20 - 60° C
Power2x internal bay for 4S/10Ah Lipo, Dual connector for external 12-36V DC source, included 90W supply
CaseShock proof, copolymer polypropylene, waterproof case with shoulder strap

Transport size and weight

Length445 mm
Width345 mm
Depth125 mm
Weight7.5 kg
